ATC-815D
$1,599.00

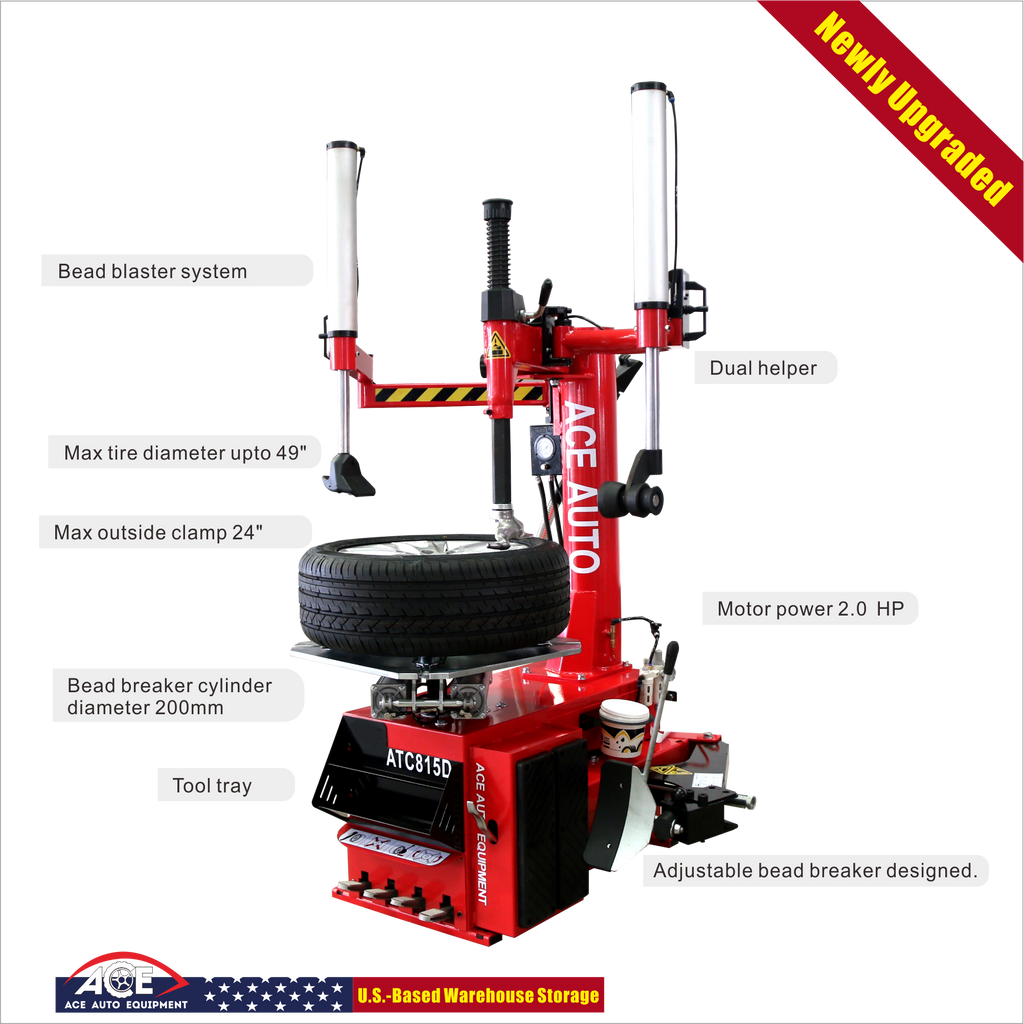

Features
l Motor 1.5kw/2HP.High-power driving motor with powerful dynamic performance.
l Stainless steel Mount / Demounting Head.
l The pull-type pedal control designed offers convenience forreplacement and maintenance.
l A high-quality filter ensures reliable oil dripped and effectively filters compressed air, thus extending the service life of the pneumatic system.
l The closed body is designed to protect the inner parts effectively.
l Bead breaker blade cover and clamping jaw covers areused to effectively prevent the rim from being damged.
l Equipped with a 200mm bead breaker cylinder, it generates strong power to reliably break the tire bead.
Technical Date
|
49inch/1248mm |
|
|
Max Wheel Width(Mounting): |
15"/380mm |
|
Outside Clamping Range: |
11"-24" |
|
Inside Clamping Range: |
13"-26" |
|
Bead Breaker Tire Width: (Demounting) |
15"/380mm (Max tire height <11. 4inch) |
|
Assist Helper Type |
Dual Pneumatic Assist Arms |
|
Bead breaker cylinder |
Diameter 200mm 77/8 inches |
|
Power Supply: |
110V/1PH/60HZ |
|
Motor Power: |
2.0HP/1.5KW |
|
Rotation Speed: |
6.8r/min |
|
Air Pressure: |
116-145psi/0.8-1.0Mpa |
|
Drive System Type |
Electric /Air |
|
Bead Seating System |
Yes |
|
Net weight: |
273KG |
