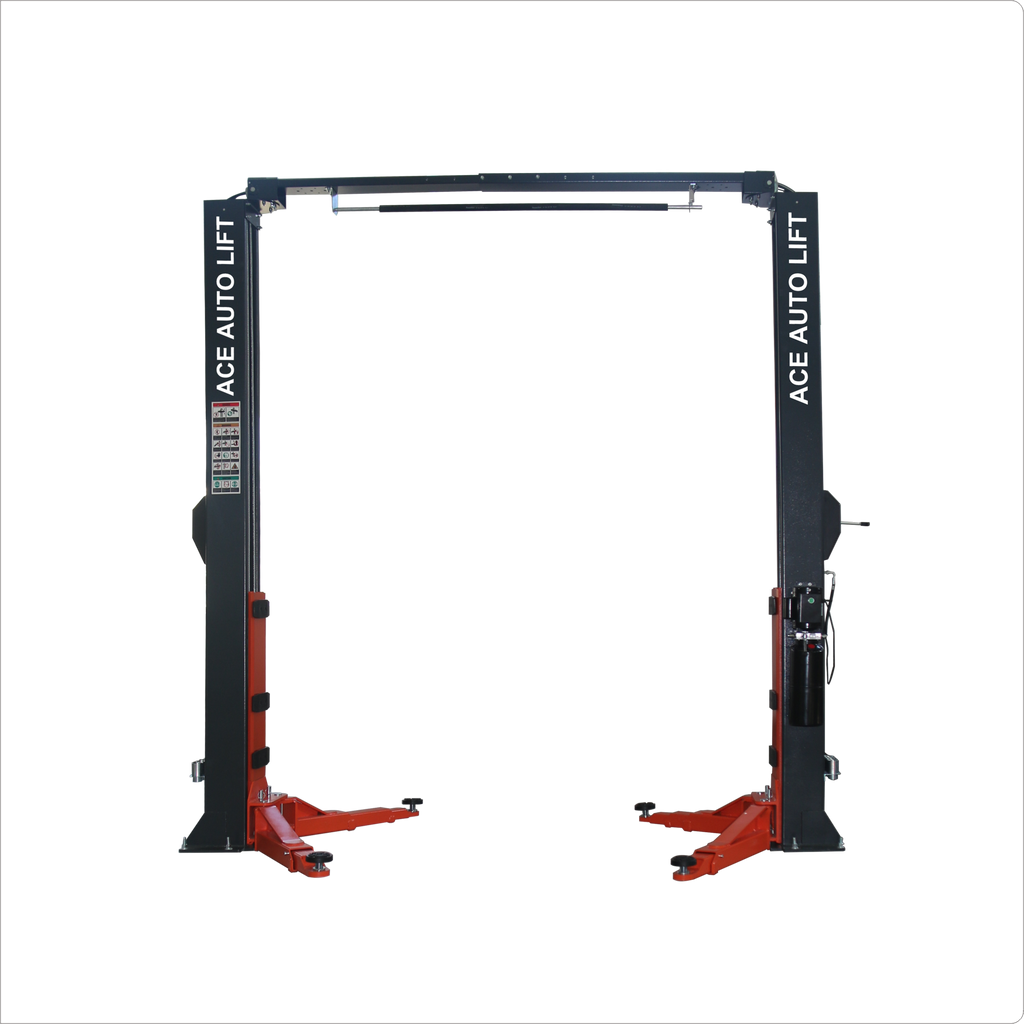

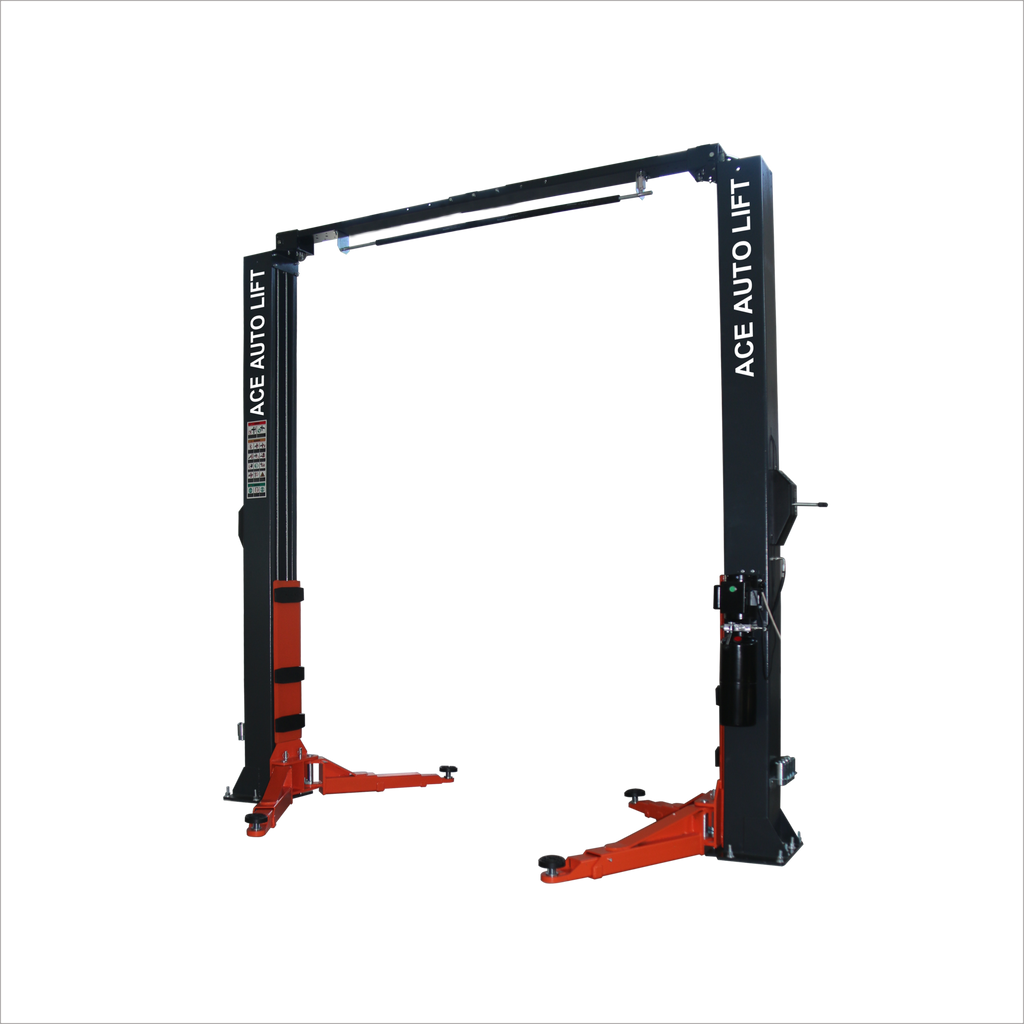

2-Post Lift ACL-M2100/M2100E
$0.00
Features
l 10,000 lbs lifting capacity
l Symmetric clearfloor design
l CE Approved and Certified, 115% dynamic loading capacityand 150% static loading capacity tested
l Manual Single-point safety release
l Asymmetric arm design, 2-stage and 3-stage
l Dual Hydraulic Direct-Drive Cylinders
l Overhead safety shutoff bar
l Heightening adapter Holders come standard(8pcs/stackable)
l Clear-floor convenience

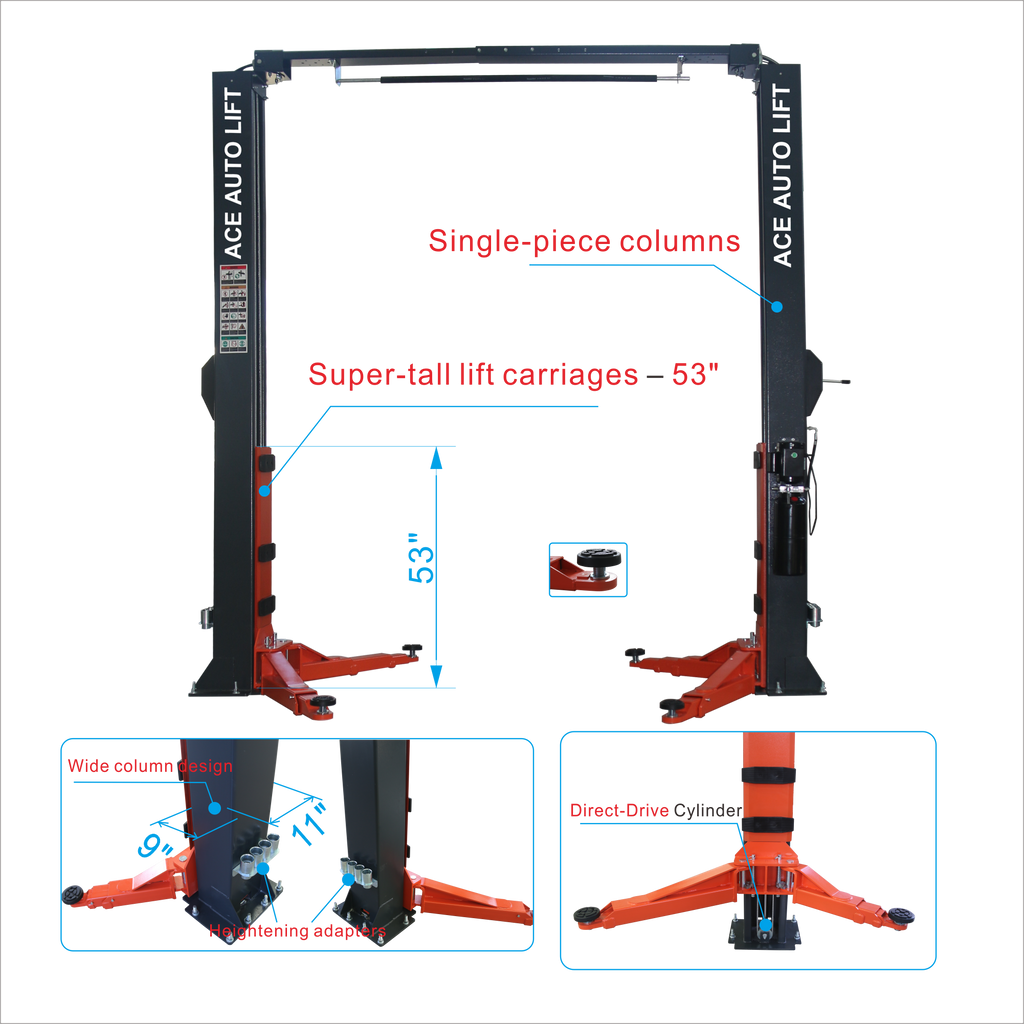

l Single-piece columns and wide columns design-Columnsare using single-piece construction for added strength andless fatigue under heavy load conditions.
l High quality hydraulic system with 220V/60HZ/1PH or 110V/60HZ/1PH(Optional)
l Super-tall lift carriages - 53" tall carriages areconsiderably taller than most two-post styles, which minimizes the stress placed on the load bearings and columns.
Technical Date
|
Model |
ACL-M2100 |
ACL-M2100E |
|
Lifting Capacity |
10000 Ibs(4500 KG) |
|
|
A-Max. Lifting Height |
70.75"/1800 mm |
|
|
B-Min. Height |
4.53"/115 mm |
|
|
C-Height Overall |
141.7"/3599mm |
141.25"/3587 mm |
|
D-Width Overall |
138.58"/3520 mm |
|
|
E-Inside Columns |
112.6"/2860mm |
|
|
F-Drive-Thru Clearance |
100.39"/2550mm |
|
|
G-Front Arm Reach (Min) |
23.22"/590 mm (3 stages) |
|
|
H-Front Arm Reach (Max) |
44.29"/1125 mm (3 stages) |
|
|
I-Rear Arm Reach (Min) |
31.5"/800 mm(2 stages) |
|
|
J-Rear Arm Reach (Max) |
49.21"/1250 mm (2 stages) |
|
|
Motor |
220VAC /60HZ/1PH/2.2KW |
|
|
Net Weight |
800 KG/1760 lbs |
860 KG/1892 lbs |
