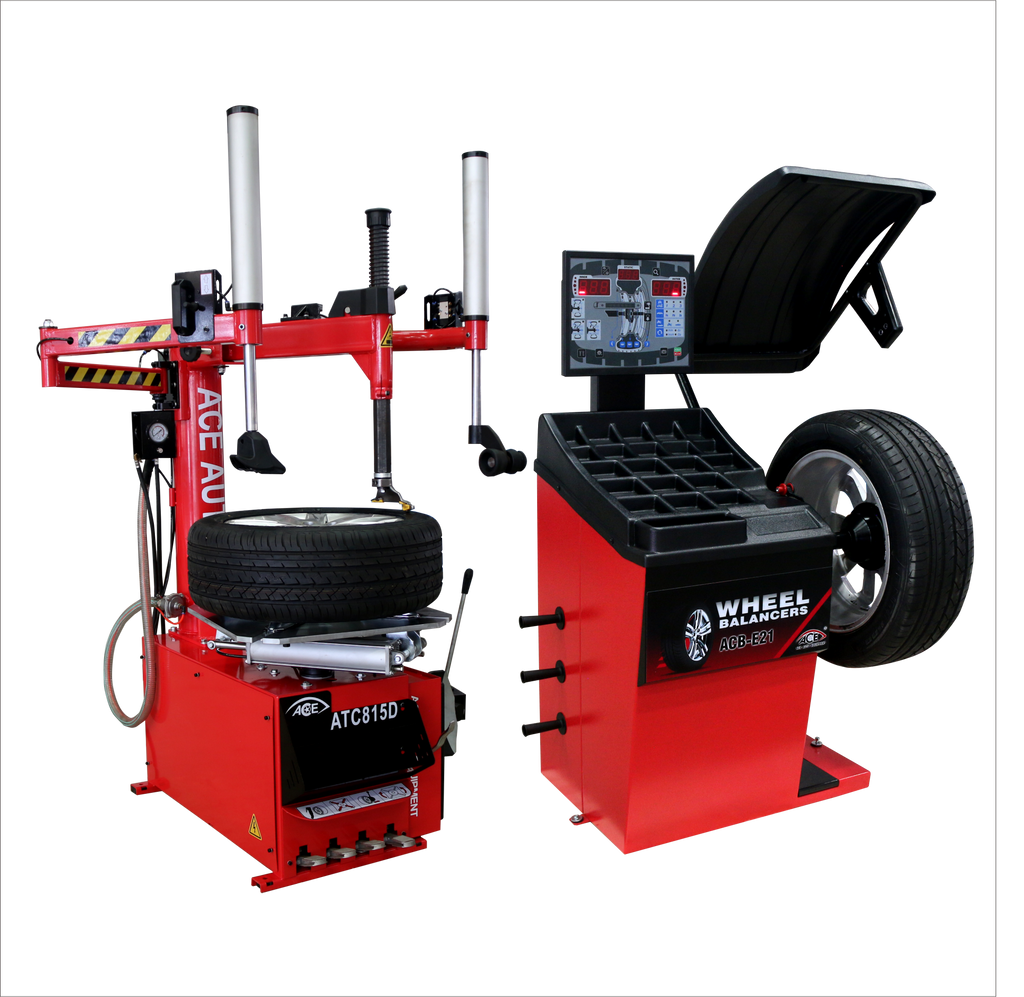

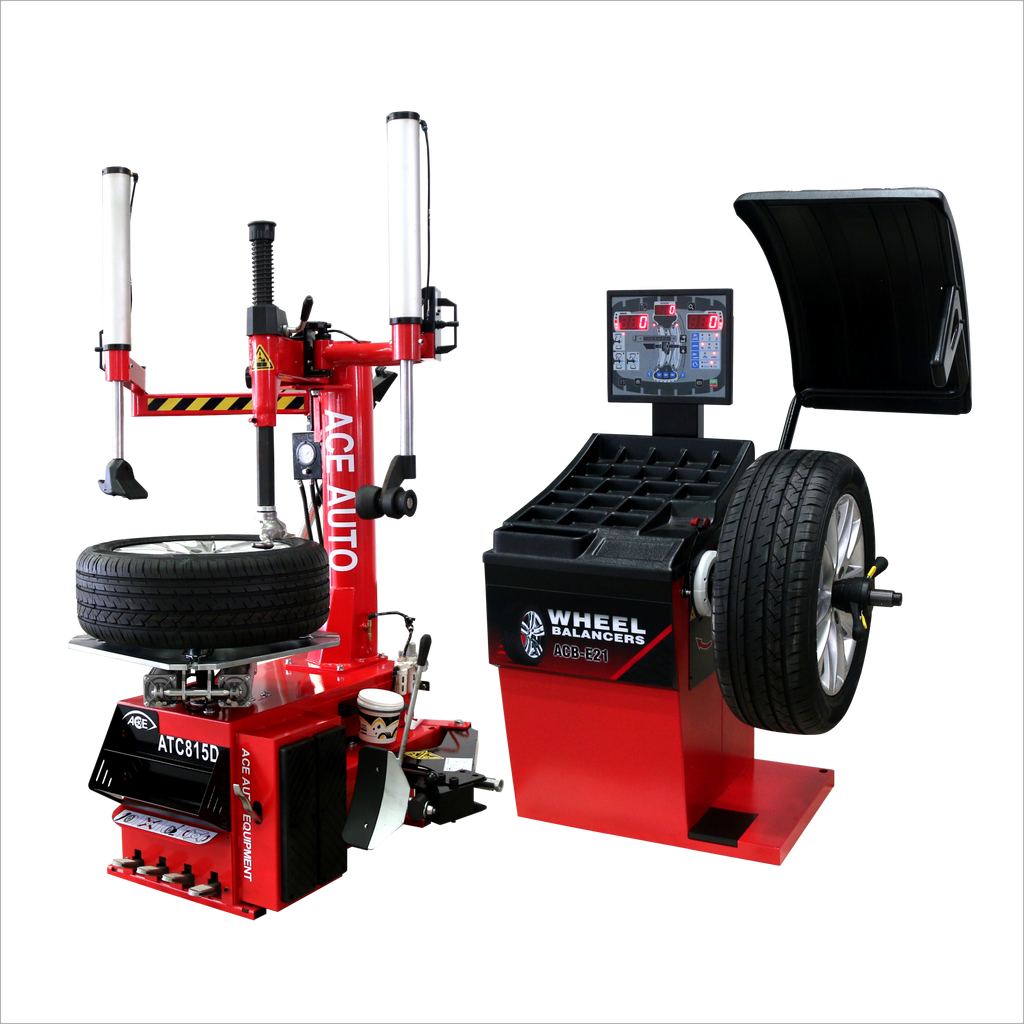

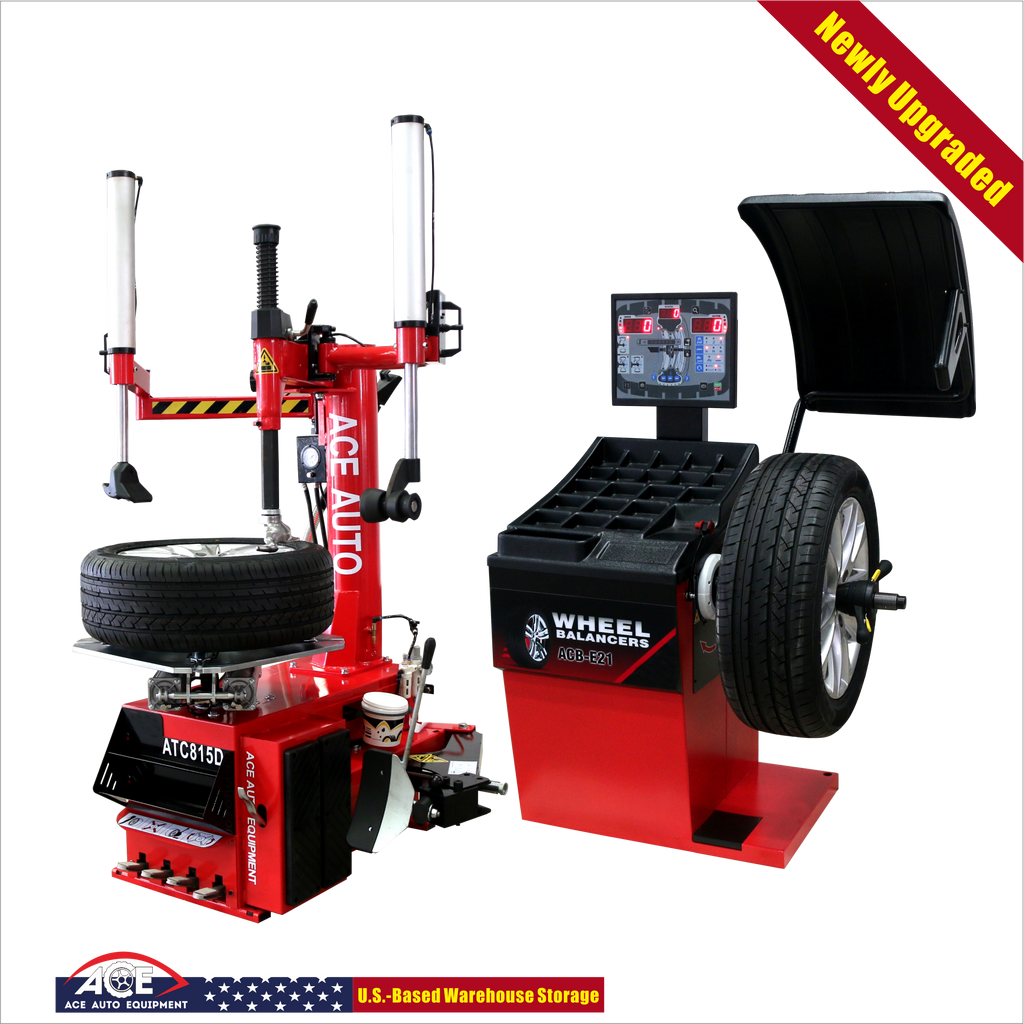

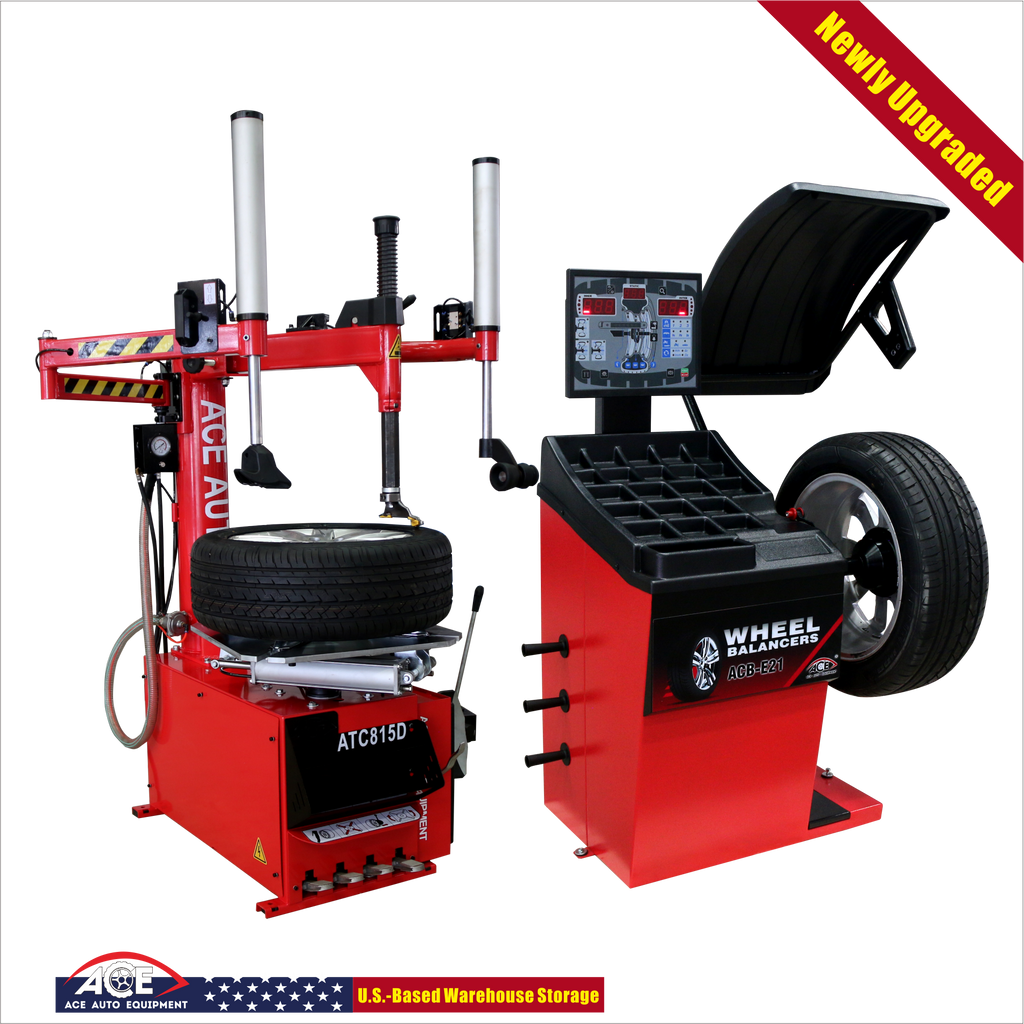

ATC-815D / ACB-E21 Combo
$3,099.00
Features
l Motor 1.5kw/2HP.High-power driving motor with powerful dynamic performance.
l Stainless steel Mount / Demounting Head.
l The pull-type pedal control designed offers convenience forreplacement and maintenance.
l A high-quality filter ensures reliable oil dripped and effectively filters compressed air, thus extending the service life of the pneumatic system.
l The closed body is designed to protect the inner parts effectively.
l Bead breaker blade cover and clamping jaw covers areused to effectively prevent the rim from being damged.
l Equipped with a 200mm bead breaker cylinder, it generates strong power to reliably break the tire bead.
Technical Date
|
49inch/1248mm |
|
|
Max Wheel Width(Mounting): |
15"/380mm |
|
Outside Clamping Range: |
11"-24" |
|
Inside Clamping Range: |
13"-26" |
|
Bead Breaker Tire Width: (Demounting) |
15"/380mm (Max tire height <11. 4inch) |
|

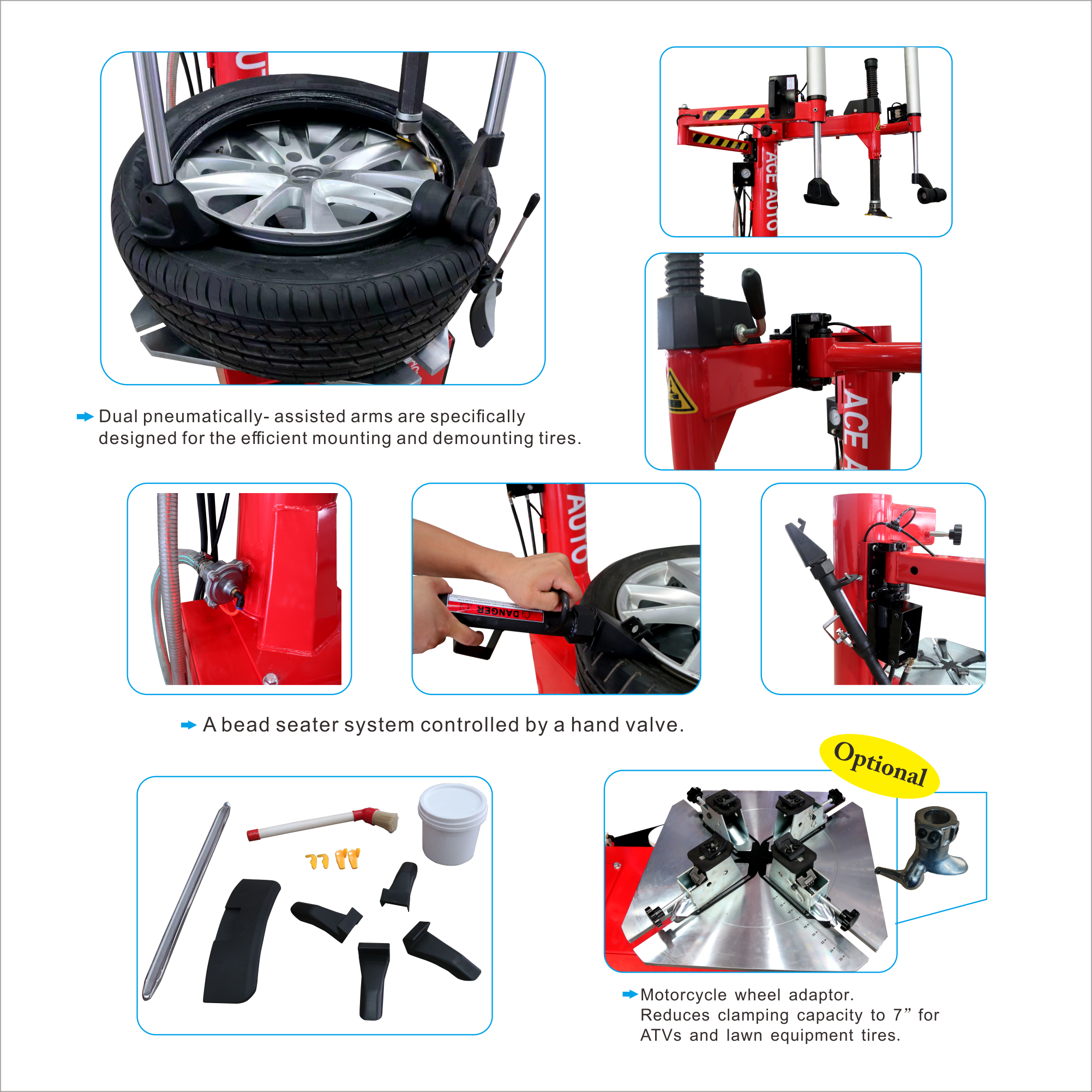

Assist Helper Type |
Dual Pneumatic Assist Arms |
|
Bead breaker cylinder |
Diameter 200mm 77/8 inches |
|
Power Supply: |
110V/1PH/60HZ |
|
Motor Power: |
2.0HP/1.5KW |
|
Rotation Speed: |
6.8r/min |
|
Air Pressure: |
116-145psi/0.8-1.0Mpa |
|
Drive System Type |
Electric /Air |
|
Bead Seating System |
Yes |
|
Net weight: |
273KG |
ACB-E21
Features
l Multi-user management enables the effective management of each user's workload and resource consumption.
l It features comprehensive self-diagnosis capabilities and a built-in error inquiry function, which greatly facilitates maintenance and repair work.
l After one time measurement, you can freely switch the position of the applied weights between the 12 o'clock and 6 o'clock position. This feature also makes rim inner cleaning and the application of sticking weights more convenient.
l The "rotating wheel input" function enables rapid function selection and parameter setting.
l The built - in economical mode saves balance weights and time.
l There are four cones made of precision - machined, hardened steel.
l A self-calibration function is for the shaft and adaptors.
l Conduct a precision check of the rim runout and condition,and provide a quantitative report.
Technical Date
|
E21 |
|
|
Rim Diameter |
10”-32" |
|
Rim width |
1.5"-25” |
|
Maximum Tire Diameter |
46" |
|
Maximum Tire Weight |
176lbs180Kg |
|
Accuracy |
+/-1g(.0350z) |
|
Placement Accuracy |
1· |
|
Cycle Time |
6S |
|
Rotation Speed |
200rpm |
|
Power Supply |
110V/60HZ/1PH |
|
Motor Power |
0.25KW |
|
Shaft Diameter |
40mm |
|
Standard Cones Quantity Diameter Range |
4 pcs /1.8"-5.25" |
|
Distance Between the Flange and the Body |
10.8"/275mm |
Configuration
|
Model |
E21 |
|
Wheel guard |
YES |
|
Automatic gauge A/D |
YES |
|
Automatic gauge B |
YES |
|
Automatic locating and locking unbalanced position| |
YES |
|
Laser indicator for inner 12 o'clock position |
YES |
|
Laser indicator for inner 6 o'clock position |
YES |
|
Display |
LED |
|
Lighting |
YES |
|
Rim runout diagnosis |
YES |
|
EALU function |
YES |
|
Calibration, self diagnosis, setting up functions |
YES |
|
Wheel locking method |
By nut |
