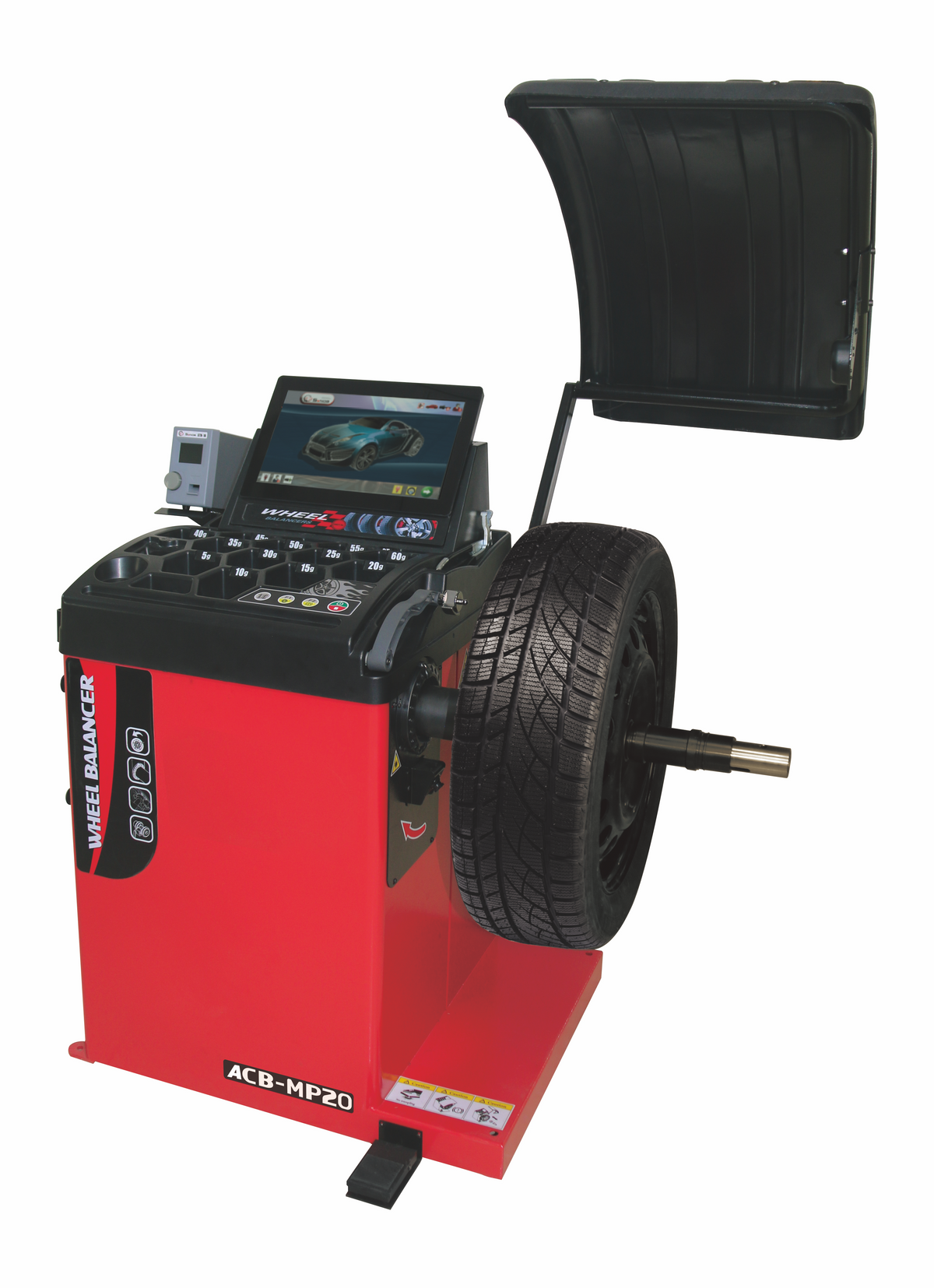

ACB-MP20
$0.00

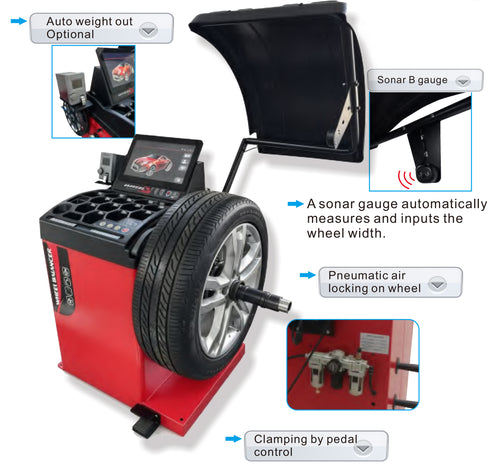

l Automatic Sonar Wheel Width Measurement.
l Plastic injection-molded weight tray with excellent flexibility and strength. Uniform dimensions for easy after-sales replacement.
l Jog dial input function for quick function selection and parameter entry.
l Equipped with a standard 40mm lead screw, robust and durable. Compatible with standard wheel balancer accessories worldwide. The finely ground spindle end ensures durability, fine finish and high spindle precision.

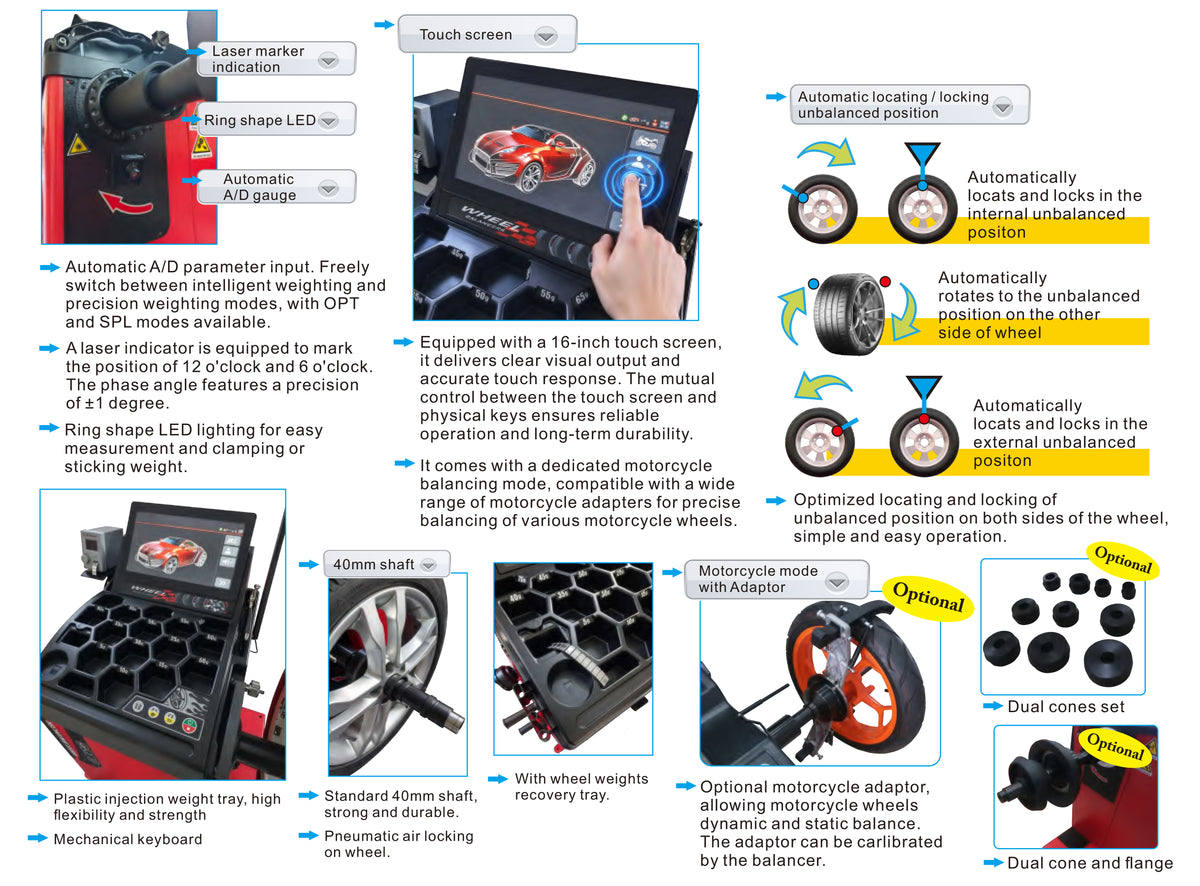

l Automatic A/D/B parameter input. Freely switch between intelligent weight placement and precise weight placement modes. Supports OPT (unbalance optimization) and SPL (weight split & hidden) modes.
l Self-calibration function: simple operation to quickly restore machine precision.
Technical Date |
|
Rim Diameter |
10--32" |
Rim width |
1.5±-25” |
Maximum Tire Diameter |
43.3 |
Maximum Tire Weight |
1761bs/80Kg |
Accuracy |
+/-1g(.0350z) |
PlacementAccuracy |
1° |
Cycle Time |
6S |
Rotation Speed |
200rpm |
Power Supply |
110V/60HZ/1PH |
Motor Power |
0.25KW |
Shaft Diameter |
40mm |
Standard Cones Quantity Diameter Range |
4 pcs /1.8"-5.25" |
Distance Between the Flange and the Body |
10.8±/275mm |
Configuration |
|
Wheel guard |
YES |
Automatic gauge A/D |
YES |
Automatic gauge B |
YES |
Automatic locating and locking unbalanced position |
YES |
Laser indicator for inner 12 o'clock position |
YES |
Laser indicator for inner 6 o'clock position |
YES |
Display |
LED |
Lighting |
YES |
Rim runout diagnosis |
YES |
EALU function |
YES |
Calibration, self diagnosis, setting up functions |
YES |
Wheel locking method |
Pneumatic |
