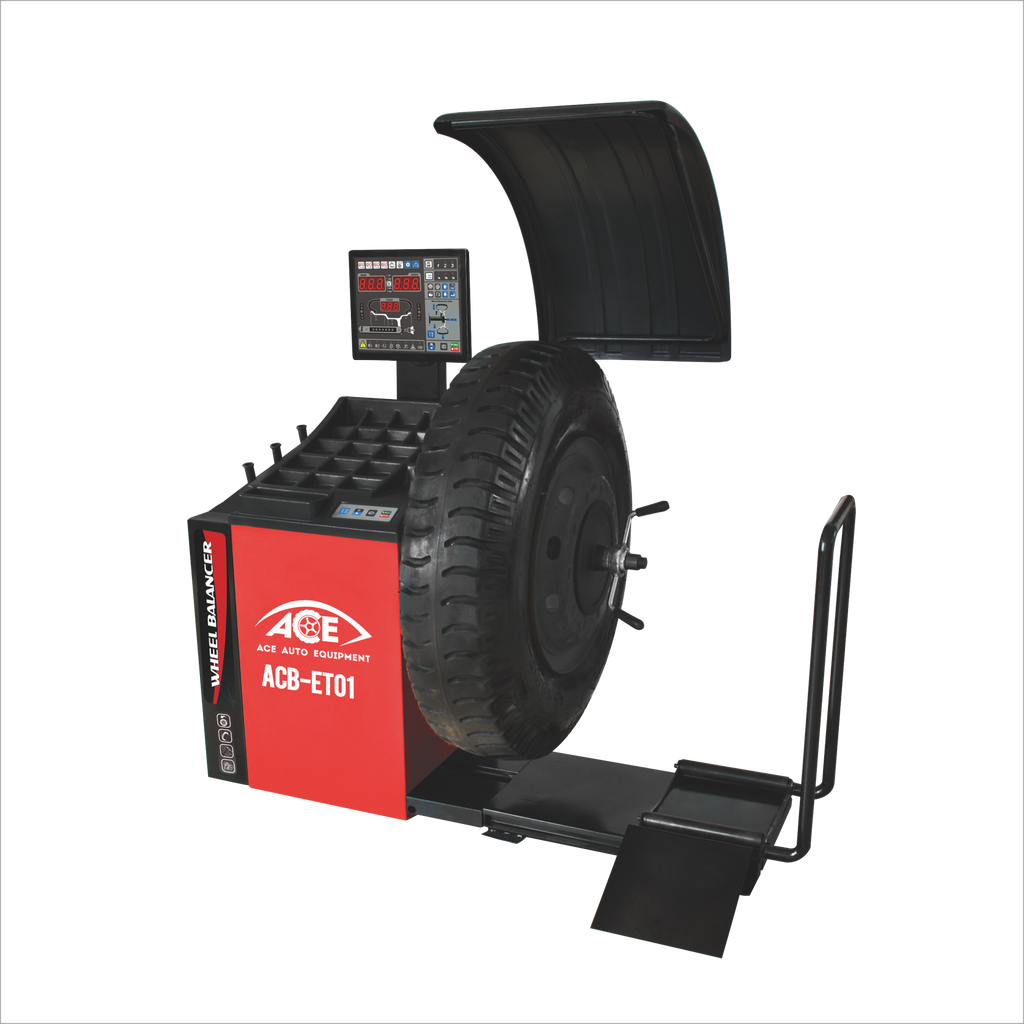

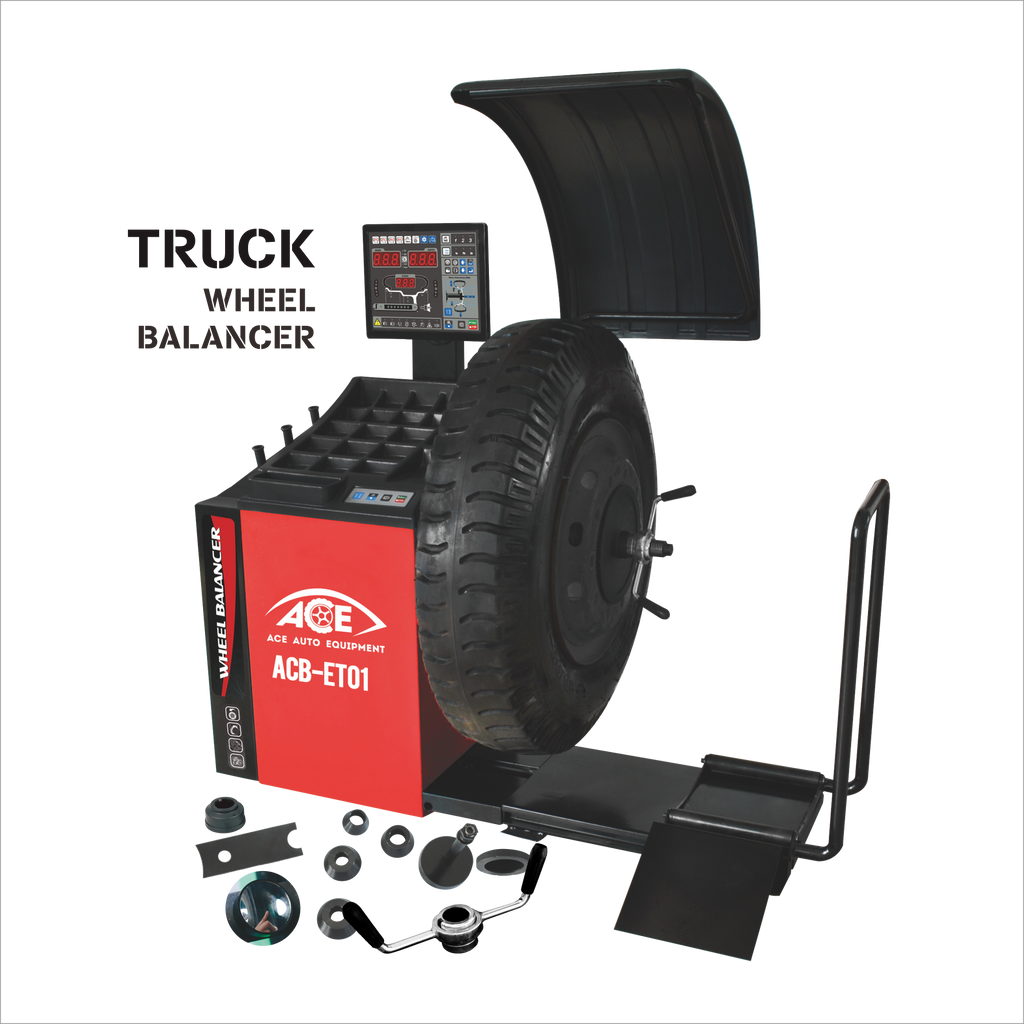

ACE Car & Truck Wheel Balancer ACB-ET01 – Dual Mode, 1g/5g Precision
$0.00
Skip to product information
ACE Car & Truck Wheel Balancer ACB-ET01 – Dual Mode, 1g/5g Precision
$0.00
l Complete self diagnosis and built-in error inquiry, convenient for maintenance and repair.
l Equipped with lift rack which is linked with the balancer shaft, preventing user from accidental danger.
|
Car mode |
Technical Specification |
|
|
Rim diameter |
10”-32” |
|
|
|
Automatic gauge measurement range |
10”-26” |
|
|
Rim width |
1.5”-25” |
|
|
Rotation speed(rpm) |
<150 rpm |
|
|
Precision |
1g |
|
Truck mode |
Technical Specifcation |
|
|
Rim diameter |
14”-35” |
|
|
|
Automatic gauge measurement range |
14”-30” |
|
|
Rim width |
5”-25” |
|
|
Max wheel diameter |
<1200mm |
|
|
Rotation speed(rpm) |
<80rpm |
|
|
Precision |
5g |
|
|
Max wheel weight |
200kg |
|
|
Cycle time |
<65 |
|
|
Power supply |
110v 60Hz 220v 50Hz |
|
Configuration |
|
|
Gauge AVD, truck and car gauge shift |
|
|
Automatic gauge B |
√ |
|
Automatic locating unbalance point( car) and manual locating unbalance point ( tuck) |
√ |
|
Lighting |
√ |
|
Laser marker 12 o' clock sticking weight |
√ |
|
√ |
|
|
Rim diagnosis |
√ |
|
Foot pedal lock |
√ |
|
Truck and car ALU |
√ |
|
Truck and car EALU |
√ |
|
Automatic locking unbalance point |
√ |
|
Calibration, self diagnosis, setting up functions |
√ |
